Luxury Vinyl Tile Floor (LVT) Click System

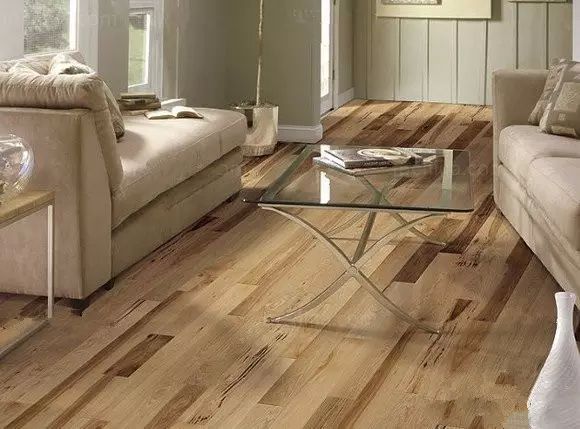

IPAUL offer the Luxury Vinyl Tile Floor (LVT) for residential or commercial application. We can make real wood texture, or the styles nearly very similar to marble or carpet tile. LVT have different types for different application.
1. Anti-slip, Waterproof and Fireproof.
2. Anti-aging and durable, Sound absorption.
3. Eco-friendly, Recycled and with 0 formaldehyde.
4. Easy of installation and maintenance.
5. With UV coating, Anti-scratch, Light weight.
6. Realistic, Elegant appearance.
Name | Feature | Install way | Thickness | Wear Layer | Size( Inches) |
Dry Back | Dry back Vinyl is perfect for young families because it's cost effective, low maintenance and provides a fantastic realistic look. Another benefit of vinyl flooring is how durable it is. | Flooring boarding with professional glue |
2.0mm 2.5mm 3.0mm |
0.2mm 0.3mm 0.5mm |
6*36 6*48 7.25*48 |
Self Adhesive | Self adhesive vinyl planks are coated with a layer of pressure sensitive glue. This means that you can simply pull off the paper separator and the planks are ready to be installed. | Have self-adhesive layer on the back, floor boarding by yourself |
2.0mm 2.5mm 3.0mm |
0.2mm 0.3mm 0.5mm |
6*36 6*48 7.25*48 |
Unilin Click | Click together vinyl planks interlock together to create a realistic wood or stone look. They can be glued down or installed as a floating floor. Click together can be installed with minimal tools. | Click system |
4.0mm 5.0mm |
0.3mm 0.5mm |
6*36 6*48 7.25*48 |
Loose Lay | Loose lay is the fantastic do-it-yourself glue free floor system, It is a non-click vinyl plank/tile which is laid by just butting up the edges to each other tightly. | Flooring Boarding directly by its dead-weight | 5.0mm | 0.55mm |
7.25*48 9*48 |
Technical specification | ||
DESCRIPTION | STANDARD | RESULT |
Total thickness | EN428 | 2.0mm~8.0mm |
Thickness of wear layer | EN429 | 0.20mm~0.7mm |
Dimension (Wood) Dimension (Mixed Wooden pattern) |
EN426 | 101.6x 914.4 mm (4"*36" ) |
152.4 x 914.4mm (6"*36" ) | ||
152.4*1219.2 mm (6"*48" ) | ||
184.15*1219.2 mm(7"*48" ) | ||
Dimension (Marble, Carpet) | EN426 | 457.2 x 457.2mm (18"*18" ) |
457.2 x 914.4 mm (18"*36") | ||
CLASSIFICATION | ||
Norm/Product specification | EN649 | GB/T 11982.1-2005 |
Fire rating | EN 13 501-1 | Bfl-s1 |
Fire rating | GB 8624-2012 | b1(B-s1,t0) |
Toxic testing | GB 18586-2001 | Pass |
REACH (163 SVHC) | SGS SVHC | Pass |
ROSHS RoSHS | IEC | Pass |
RoHS | EN71-3 | Pass |
Slip resistance wet | DIN 51 130 | R9 |
PERFORMANCE | ||
Abrasion resistance | EN 660.2 | ≤2.0mm |
Abrasion group | EN 649 | T (group)³ |
Dimensional stability | EN 434 | ≤0.4% |
Residual indentation | EN 433 | 0.02mm |
Thermal conductivity | EN 12 524 | 0.25W/ (m.K) |
Color fastness | EN 20 105 - B02 | ≥ 7 degree |
Dimensional stability after exposure to heat (horizontal) | GB/T 11982.1-2005 | 0.07mm |
Dimensional stability after exposure to heat (vertical) | GB/T 11982.1-2005 | 0.19mm |
Peel strength (horizontal) | GB/T 11982.1-2005 | 92.99N/50mm |
Peel strength (vertical) | GB/T 11982.1-2005 | 90.23N/50mm |
TVOC TVOC* | ISO 16000-9 | Pass |
Formaldehyde | ISO 1600-9 : 2006 | ND |
Acetaldehyde | ISO 1600-9 : 2006 | ND |
Items | Discription |
Size (available) | 6" x 36" / 7"X48" / 9" x 48" |
Thickness (available) | 4.0mm / 4.2mm / 5.0mm/ 7.0mm (WPC) |
Wear layer (available) | 0.3mm / 0.5mm / 0.7mm |
Surface treatment | UV coated with matt finish |
Soft base pad | EVA, IXPE, or Soft wood sheet will be stick on the bottom to reduce the acoustic and increase the foot softy feeling |
Base core | LVT, SPC, and WPC is different with the base core material |
Installation | Unilin Click ( Standard) or Valinge Click |
Features | Waterproof / Anti -slip / Wear-resistance / Fire-resistance / Sound barrier |
Advantages | Easy click to install |
