Gerflor-TRANSIT FIRST


TRANSIT CLASSIC PANAMA is a multilayered compact vinyl floor covering, available in 2m width sheet, with a group T wear rating. The product comprises a printed design that is protected by a transparent wear layer and a compact backing with fiber glass layer, which resists against static or dynamic perforation under rolling loads and provide good dimensional stability.

TRANSIT CLASSIC PANAMA is treated with PUR protect maintenance treatment with high resistance to scratching, scuffing & easy cleaning, and Sanosol treated throughout the thickness to guard against bacterial and fungicidal contamination. It has no DOP, no heavy metal, no benzene, no formaldehyde & 100% compliant with REACH, which is friendly to health and environment, recommended for education, office, retail, hospital and institutional buildings.

Advantages

1. PUR Protect special maintenance treatment with high resistance to scratching, scuffing & easy cleaning.

2. Transparent wear layer with printed design, highest durability.

3. Compact backing with fiber glass reinforced layer against static or dynamic perforation under rolling loads with good dimensional stability.

4. Sanosol treated throughout the thickness to guard against bacterial and fungicidal contamination.

5. No DOP, no heavy metal, friendly to health and environment.

6. Recommended for education, office, retail, hospital and institutional buildings.

5. Recycled Content:  100% REACH compliant recycled content.


Performance and Benefits

*  Excellent abrasion resistance

* Matt finish surface: Enhanced design & color

* Available in 2m Sheet

* Homogeneous vinyl flooring suitable for medium to heavy duty traffic areas

* Flexible flooring, easy to install & weld

* Directional design available in 9 references

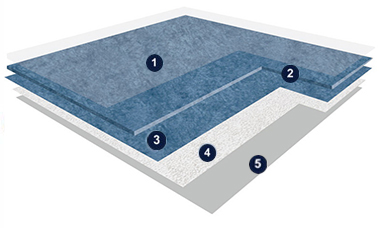

1.  PUR protection special maintenance treatment

2.  Transparent wear layer
3.  Printed design

4.  Fiber glass reinforced Layer

5. Compact back layer


Installation

Installation should be carried out in accordance with local standards. Subfloor should be smooth, hard, clean and dry prior to laying. Where applicable the subfloor must  incorporate an effective Damp Proof Membrane. The material must be allowed to acclimatize 24 hours before installation in a room temperature of between 18~24 degree. All seams must be hot welded using matching welding rod.

Maintenance

No wax is needed right after installation. Maintenance should be carried out regularly  to retain the appearance and durability of the floor. The floor covering should be maintained with regular sweeping and damp mopping using a neutral cleanser. More intense cleaning should be carried out using a fine spray cleaning pad under a floor machine, or for  large areas combined machine cleaning.


TRANSIT FIRST PANAMA SPECIFICATION



DESCRIPTION



Total thickness
ISO 24346 (EN 428)
mm
1.8
Thickness of wear layer
EN 429
mm
0.3
Weight EN 430 g/m2 2800
Width of sheet
ISO 24341 (EN 426)
cm
200
Length of sheet
ISO 24341 (EN 426)
lm
20
CLASSIFICATION



Norm / Product specification
-
ISO 10581(EN 649)
European classification
ISO 10874 (EN 685)

23-31
Fire rating
EN 13 501-1

Bfl-s1

GB 8624 - 2012

B1(B-s1,t0)
Toxic testing
GB 18586-2001

Qualified
Static electrical propensity EN 1815
KV <2
Electrical resistance EN 1081
Ω
10^9-10^10
Slip resistance dry
EN 13893
- ≥0.3
Slip resistance wet
DIN 51130
class
R9
PERFORMANCES


Wear resistance
EN 660.2
mm^3 ≤2.0
Wear group
EN 649
group
T
Dimensional stability
ISO 23999 (EN 434)
% ≤ 0.4
Residual indentation EN 434 mm ≤ 0.1
Castor chair test
ISO 4918 (EN 425)

OK
Thermal conductivity
ISO 10456 (EN 12524)
W/(m.K)
≈0.25
Colour fastness
ISO 105 - B02
degree ≥ 6
Chemical products resistance
ISO 26987 (EN 423)
- OK
Anti-bacterial and fungicidal treatment
- - OK
Special maintenance treatment
W/(m.K)
- PUR Protect
Color number
- - 9
ENVIRONMENT / INDOOR AIR QUALITY
-

TVOC after 28 days 28
ISO 16000 - 6 μg/m3
<10
Certification


Floorscore®
CE MARKING



CE
EN 14041






































ABOUT IPAUL PVC Resilient Flooring

IPAUL is one of the partner in South China with Gerflor flooring products in some high standard project.

IPAUL are fully committed to develop, produce, sell and install PVC resilient flooring (PVC Floor/ Vinyl Resilient Floor/Homogeneous PVC Floor, LVT/LVS/SPC/WPC). We provide excellent flooring products and service for our customer.

Our head office located in Guangzhou, products sell well all over China, and we also export our products to The Americas, Europe, Southeast Asian country, Middle East, Africa and so on. Our flooring has rich colors, good performance, It is well received by our customers. With a fully functional workshop, advanced PVC plastic floor production equipment and product testing center, then a full range of strict quality control is carried out for the production process of the product.

We actively advocate the “low-carbon and environmental building materials”. Our PVC roller sheet, PVC tiles and rubber flooring are widely use for medical institution, educational services, office place,

Residential area, airport, hotel, gym, library, club, shopping mall, factory and so on. It brings comfortable space for the customers to learn, work, exercise and live.


For more products, you can refer the table in the following:

Gerfloor Subrand Product description Surface treatment Bottom Lay WebPages
1- MIPOLAM 150

Gerflor-Directional Homogeneous Flooring-

Thickness: 2/1.5 mm; Size: 20m (L)* 2m (W)

PUR coating Compact Click here
2-MIPOLAM 180

Gerflor-Directional Homogeneous Flooring-

Thickness: 2/2.5mm Size: 20m (L)* 2m (W)

MURAL PLUS: 1.0mm Size: 30m (L)* 2m (W)

PUR coating Compact
Click here
3-TRANSIT CLASSIC

Gerflor Multi Layers Compact Vinyl Flooring

Thickness: 2.0 mm; Size: 20m (L)* 2m (W)

PUR coating

0.3/0.4 mm WL

Compact Click here
4-TRANSIT FIRST

Gerflor Multi Layers Compact Vinyl Flooring

Thickness: 1.8 mm; Size: 20m (L)* 2m (W)

PUR coating

0.3 mm WL

Compact


Click here
5-TROPLAN PLUS MIPOLAM


Gerflor-Directional Homogeneous Flooring-

Thickness: 2 mm; Size: 20m (L)* 2m (W)



EVERCARE

Compact Click here
6-TRAYLAY EMOTION

Gerflor Multi Layers Compact Vinyl Flooring-BORGO

Thickness: 2.0/2.6mm;  mm; Size: 20m (L)* 2m (W)

PUR coating

0.7mm WL

Compact Click here

Gerflor Multi Layers Compact Vinyl Flooring-COUTURE

Thickness: 2.0/2.6mm;  mm; Size: 20m (L)* 2m (W)

PUR coating

0.7mm WL

Compact
Click here

Gerflor Multi Layers Compact Vinyl Flooring-PANAME

Thickness: 2.0/2.6mm;  mm; Size: 20m (L)* 2m (W)

PUR coating

0.7mm WL

Compact
Click here

Gerflor Multi Layers Compact Vinyl Flooring-WOOD

Thickness: 2.0/2.6mm;  mm; Size: 20m (L)* 2m (W)

PUR coating

0.7mm WL

Compact
Click here
7-MIPOLAM AMBIANCE ULTRA

Gerflor NON Directional Homogeneous Flooring

Thickness: 2.0 mm; Size: 20m (L)* 2m (W)

EVERCARE

Compact Click here
8-MIPOLAM AMBIANCE ACTION

Gerflor NON Directional Homogeneous Flooring

Thickness: 2.0 mm; Size: 20m (L)* 2m (W)

EVERCARE Compact Click here
9-MIPOLAM ELE 5 (Conductive Anti Static)

Gerflor NON Directional Homogeneous Flooring

Thickness: 2.0 mm; Size: 608mm*608mm


EVERCARE
Compact
Click here
